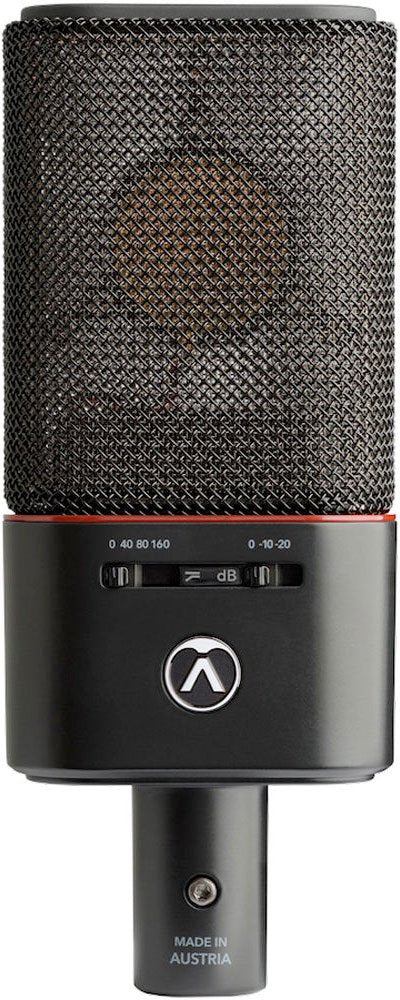

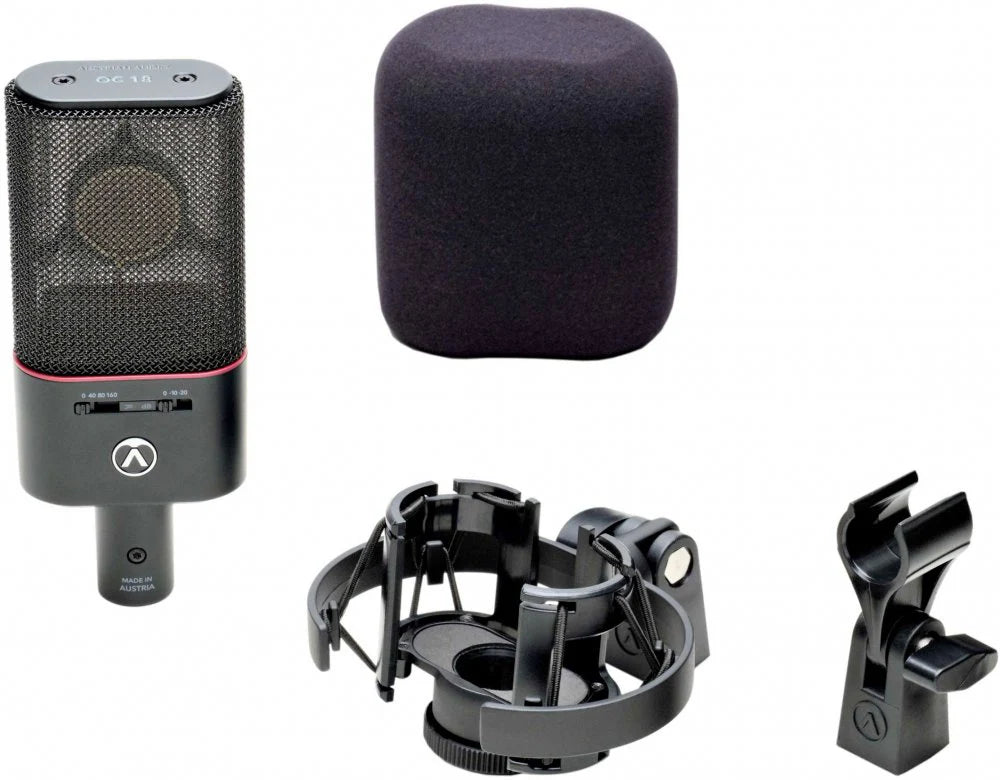

Austrian Audio OC18-STUDIOSET Large Diaphragm Microphone

Austrian Audio OC18-STUDIOSET Large Diaphragm Microphone

$999.99 CAD
$999.99 CAD
Sale Sold out

(Select Sezzle At Checkout)
View full details

Description:

Engineered and manufactured in Austria, its high sensitivity and low self-noise means it can handle everything from a whisper, to extreme SPLs without distortion, making it the perfect choice for studio, live and broadcast applications. The unique ceramic capsule design is so consistent, the OC18 can be match-paired with any other OC18 or paired with any OC818 set in cardioid mode.

Features
  • The same handcrafted design as the OC818 - Classic cardioid
  • Handcrafted CKR6 ceramic capsule - like the CKR12 capsule, but with single diaphragm
  • Every Austrian Audio OC18 and OC818 is within 1dB of each other - Making any two microphones a stereo pair

Specifications

  • Directional characteristics : Single
  • Impedance : 275 (symmetrical)
  • Polar pattern : Cardioid
  • Load impedance : > 1 k
  • Frequency range : 20 Hz - 20 kHz
  • Supply voltage : 48 V (< 2.2mA)
  • Sensitivity (all directions) : 13mV/Pa
  • Main Connector : XLR 3 pin
  • Equivalent noise level : 9 dB SPL (A)
  • Max SPL : 148 dB SPL (158 dB SPL)
  • Dimensions : 157 x 63 x 35 mm
  • Switchable pad : -10 dB, -20 dB
  • Weight : 335 g
  • Analog Low Cut filter : 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
